SKU: DD6177

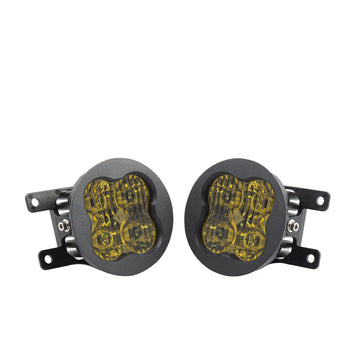

STAGE SERIES 3" SAE/DOT TYPE A FOG LIGHT KIT

$599.99 AUD
  • or 4 payments of $150.00 AUD with


Overview.
Upgrade your fog lights with DD SS3 Type A Fog Light Bracket Kit! Featuring higher output intensity than any other 3” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included round bezel, the SS3 Fog Kit has a clean, factory-style appearance, only much brighter!

Plug and Play: Thanks to custom-moulded brackets, the SS3 Fog Light Bracket Kit can be installed on your in minutes. Simply remove your factory fog light assembly and these will bolt right in its place! Wire adapters are included to connect the lights to your factory bulb sockets - no additional wiring needed!

Focused: Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-moulded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output. Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

SAE Compliant: All Stage Series beam pattern options were designed with optical simulation modelling, to shape the output in a highly-functional beam pattern.

SAE Driving is designed to supplement your high beams, but it’s great for general illumination as well. Rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds.

SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory fog lamp, and will fully illuminate the area in front of your vehicle. Choose your output colour of cool white or yellow, which is often said to help cut through inclement weather.

When installed as a pair and aimed in accordance with your state's regulations, the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light, and the Fog pattern meets SAE J583 standard as a fog lamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

White or Yellow: All Stage Series LED pods are available in a cool white or selective yellow colour. The white is a 6000K colour temperature, which is a true white output, without any blue, and matches most factory LED lighting. The selective yellow is a 3000K colour temperature, great for high contrast in poor weather or a distinctive look on the road.

Sport or Pro: Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power. Click the Specifications tab to see more information or click here.

Proven Reliability: Stage Series LED lighting has been extensively tested for long-term operation from -40 to 85 degrees C, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

FEATURES
  • Advanced TIR optics provide high efficiency and focus
  • SAE-compliant road-legal output
  • Includes round bezel, for factory-style appearance
  • Plug and play, no modification needed
  • Durable powder coated aluminium extrusion
  • Engineered and Manufactured in USA
SPECIFICATIONS
COMPATIBLITY
  • 2014-2017 Ford Fiesta ST
  • 2009-2014 Ford Focus
  • 2006-2009 Ford Mustang
  • 2015-2017 Ford Mustang
  • 2005-2007 Ford Ranger
  • 2012-2016 Fiat 500
  • 2011-2013 Honda Accord Euro
  • 2016-2019 Honda Civic
  • 2012-2014 Honda CR-V
  • 2010-2014 Honda Insight
  • 2011-2014 Nissan Juke
  • 2013-2016 Toyota 86 GTS
  • 2013-2017 Subaru BRZ
  • 2013-2019 Subaru Crosstrek
  • 2014-2019 Subaru Forester
  • 2012-2014 Subaru Impreza
  • 2015-2019 Subaru Impreza (w/ Eyesight Package)
  • 2010-2014 Subaru Liberty
  • 2010-2012 Subaru Outback
  • 2015-2017 Subaru WRX STi
  • 2015-2019 Subaru WRX
WARRANTY
  • 8 Year Warranty
INCLUDED
  • Two (2) SS3 3” Round LED Pods
  • Two (2) H11 DT Adapters
  • Mounting brackets and hardware
×
